THE WORKFLOW IMPLEMENTATION GUIDE

How to rate-limit
HubSpot workflows

From native controls to shared queues.

Use HubSpot’s built-in rate controls for a custom-code or webhook action. Calculate the setting from API requests per execution, then account for every workflow sharing the allowance. When those workflows need one common release budget, use a shared queue.

By Daeda TechnologiesVerified 9 September 2026Includes live test data

We build Daeda Throttle. This guide starts with HubSpot’s native options and explains when a separate queue helps.

Your workflow works for five contacts. Then you enroll 500, and API calls start failing. The difference may be how closely the requests arrive, not what any individual record is doing.

We’ll work through a synthetic enrichment example: three workflows, 100 records each, and two API requests per record. The receiving service has an example allowance of 100 requests per minute. These numbers are a teaching scenario, not a published HubSpot or vendor entitlement.

01 / THE PROBLEM

Why can bulk enrollment overwhelm an API?

Many records can reach a workflow action close together. Each action execution may send several API requests, and several workflows may call the same provider account. Their combined traffic can exceed the destination’s allowance even when a small test succeeds.

A record is the enrolled contact, company or other object. An action execution is that record running one workflow step. An API request is one call made during the step. One execution can make zero, one or many requests.

HubSpot documents that many objects can enroll together. That does not mean it sends unlimited traffic: HubSpot has its own scheduling, safeguards and configurable controls. Those are different from the particular budget available at your destination. Read HubSpot’s custom-code execution guidance.

Bulk arrivalsRecords reach the action together

Equal delayThe burst can arrive later

Controlled releaseSmaller batches across time

Time →

Illustration, not measured traffic. Giving each record the same delay can move a burst later; a release allowance spreads records across several batches.

Synthetic HubSpot workflow with manual enrollment followed by one custom-code action. — The live baseline workflow, captured 9 September 2026. Each of its 100 synthetic contacts runs custom code that sends a lookup request followed by an update request. The canvas shows the step order; receiver logs establish the request rate.

Why doesn’t a delay always fix it?

If 300 records enter a ten-minute delay close together, they can leave it close together ten minutes later. An equal delay shifts their timing; it does not by itself allocate a shared number of executions per minute. Use a rate control when you need a release allowance.

02 / START HERE

Does HubSpot have built-in workflow rate limiting?

Yes. HubSpot custom-code and webhook actions have configurable rate limits on action executions per time period. For one suitable action, this may solve the problem completely. The setting is disabled by default in HubSpot’s documentation.

Configure a custom-code action

Custom-code workflow actions require Data Hub Professional or Enterprise. Check HubSpot’s current availability.

Open the workflow and select its Custom code action.
Expand Configure rate limit at the bottom of the action settings.
Turn on Turn on rate limiting.
Set Action executions and Time frame. Calculate the execution allowance using the requests each execution makes.
Save, test a representative batch, and inspect the action history and receiving API.

The limit also slows progress into actions that follow the custom-code step. It counts executions, not every HTTP call inside your code. If each execution makes two requests, 32 executions can produce 64 requests. HubSpot custom-code rate-limit instructions.

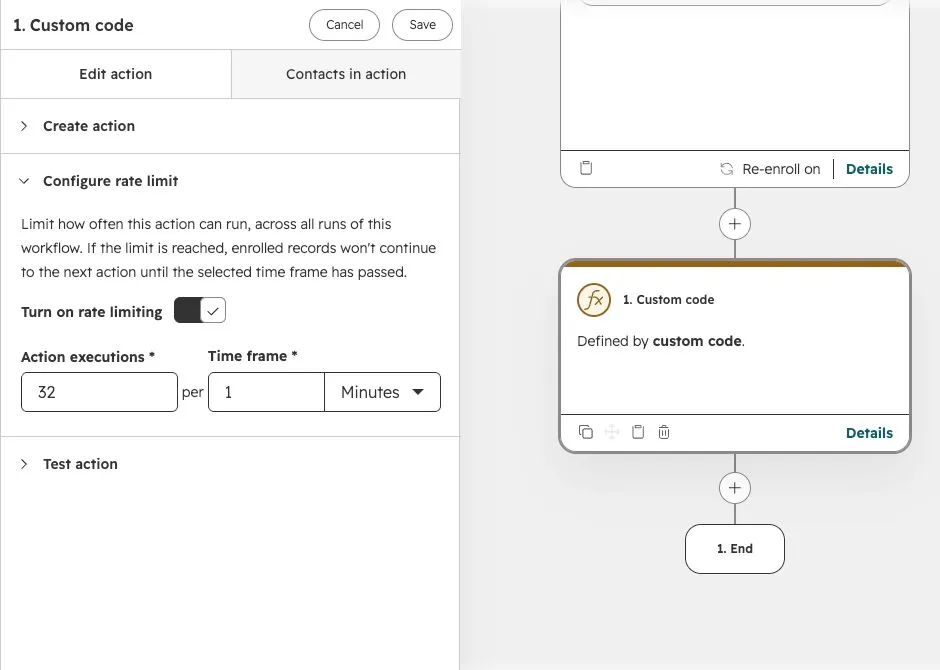

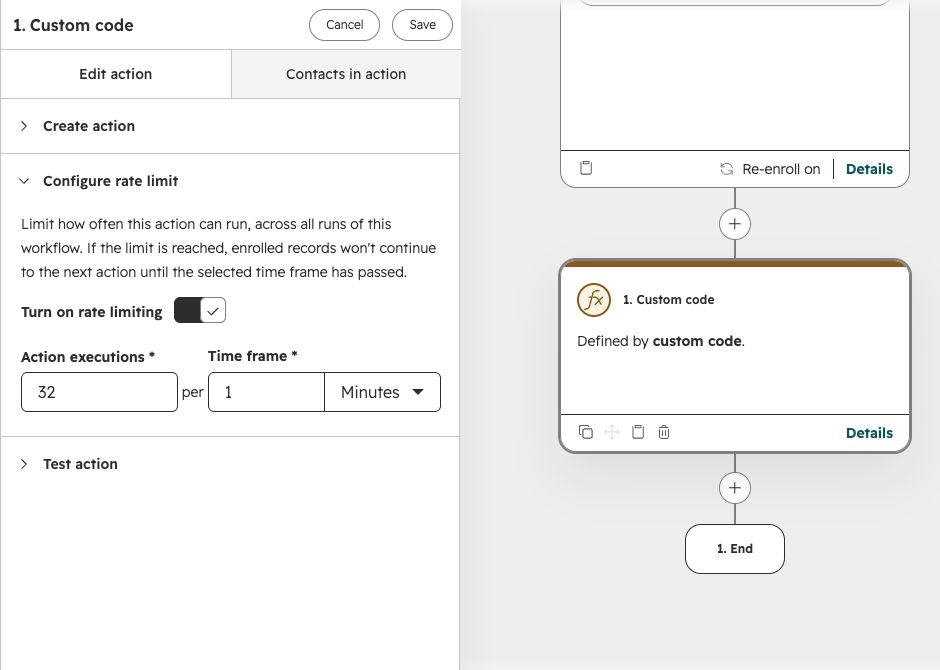

HubSpot custom-code action with native rate limiting enabled: 32 action executions per 1 minute. — Actual custom-code action settings in a disabled demonstration workflow, captured 9 September 2026. The limit applies across runs of this workflow; it is not a shared budget for other workflows. Open the full-size native settings.

Configure a webhook action

Open Send a webhook, expand Configure rate limit, enable it, and set the executions and time frame. Check that the action is available in your subscription; HubSpot currently lists workflow webhooks under Data Hub Professional and Enterprise. HubSpot webhook setup and rate controls.

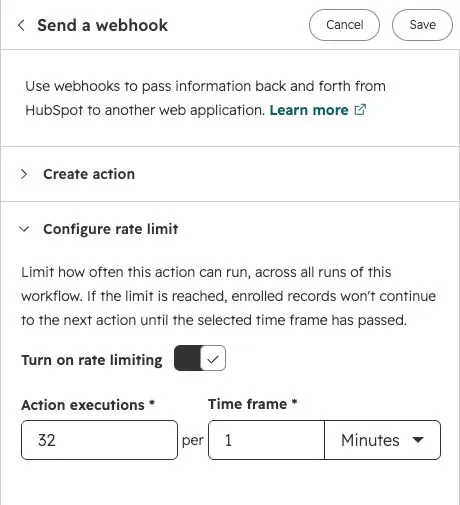

HubSpot Send a webhook panel showing its native limiter enabled for 32 executions per minute. — The webhook action has its own rate-limit panel. This configuration capture uses the same 32-execution example; the action was not run.

03 / THE CALCULATION

How do I calculate the right workflow rate limit?

Subtract traffic reserved for other callers from the API allowance, use a chosen fraction of that remaining capacity, then divide by requests per execution and round down. Use the same time window throughout the calculation.

Worked example: one provider account, three workflows
Input	Value
Records	3 workflows × 100 = 300
Requests to this provider per record	2
Provider allowance	100 requests per minute
Reserved for other callers	20 requests per minute
Fraction of remaining capacity used	80% (example choice)

(100 − 20) × 0.80 = 64 requests/minute

floor(64 ÷ 2) = 32 records/minute

This is the combined allowance for the participating workflows.

The complete workload is 600 requests. At 32 records per release, 300 records require ten batches. The calculator’s ten-minute estimate is a planning value, not a promise: the first release time, workflow scheduling, request latency and retries affect actual completion.

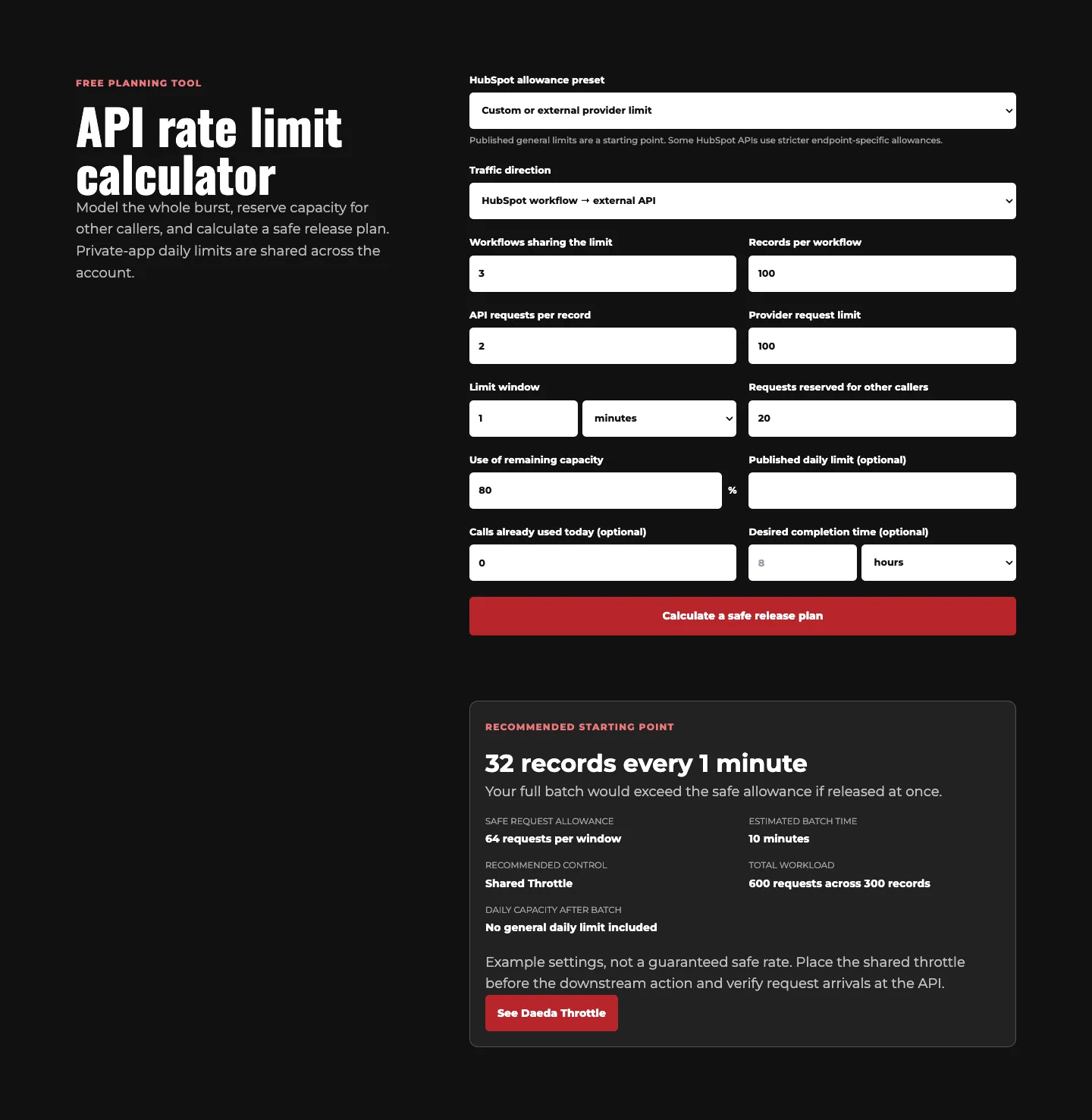

Calculator example with three workflows, 100 records each, two requests per record, 100 requests per minute, 20 reserved and 80 percent utilization; result: 32 records per minute and 64 requests per window. — The worked example in the calculator, captured from the built guide on 9 September 2026. Ten minutes is a planning estimate, not a measured completion time. Use the prefilled calculator to inspect or change these inputs.

First remove avoidable calls. For HubSpot record data, custom-code inputs can provide properties without a lookup, and outputs can feed an Edit records action instead of a separate HubSpot API write. HubSpot’s input and output guidance.

Calculate a starting rate for your own workflows →

04 / THE SHARED BUDGET

How do I coordinate several workflows sharing one API allowance?

Coordinate the combined requests from all workflows using the same provider allowance. Either divide the budget between individual action limits or route participating workflows through one shared queue. Giving each workflow the whole budget can exceed the provider’s cap.

In our example, setting each of three workflows to 32 records per minute permits 96 records per minute. At two requests each, that is 192 requests per minute, before other callers. Each setting looks modest; their sum is the problem.

Workflow A 100 recordsWorkflow B 100 recordsWorkflow C 100 records

ONE SHARED QUEUE32 recordsreleased each minute

SAME PROVIDER ACCOUNT64 requestsper 32-record batch2 requests per record

Illustration: all three workflows draw from the same 32-record release allowance. The resulting API traffic depends on what each record does after release.

Separate native settings can work if you divide the available budget correctly and maintain those allocations as workflows change. A shared queue lets the participating workflows draw from one configured pool. It does not control unrelated callers that bypass the queue, and it does not promise equal allocation between workflows.

Choose the control that matches the scope of your problem
Control	What it controls	When it fits	Boundary
Equal fixed delay	When a record continues	A time-based wait	Doesn’t establish a shared release allowance
Native action rate limit	Executions of the configured action	A supported action with an allocated budget	Account for other workflows and calls per execution
Throttle V2	Batch releases at one workflow step	A queue before a sensitive action	Separate steps have separate queues
Shared Throttle	Batch releases from one named queue	Several workflows sharing a budget	Only controls participating workflow releases
Caller-side limiter	Requests made by that client or worker	Independent integrations or request-level control	Must cover the actual callers consuming the allowance

More about shared workflow queues.

05 / CONFIGURE THE QUEUE

How do I configure a shared queue with Daeda Throttle?

Create a named queue in Daeda Throttle’s settings, set its batch size and interval, then select the same queue in every participating workflow. Put the Shared Throttle step immediately before the action that consumes the allowance.

Open Daeda Throttle → Settings → Shared Throttle in your connected apps.
Select Create Shared Queue. Give it the display name Guide enrichment demo and queue key guide-enrichment-demo.
For this example, set Batch Size: 32, Every: 1, Unit: Minutes, and Status: Active. Leave optional execution days and initial datetime blank for this continuous test.
Create the queue. In each of the three workflows, add Shared Throttle immediately before the custom-code action.
Choose Guide enrichment demo in the action’s Shared Queue field. Save each workflow and verify all three use the same queue.

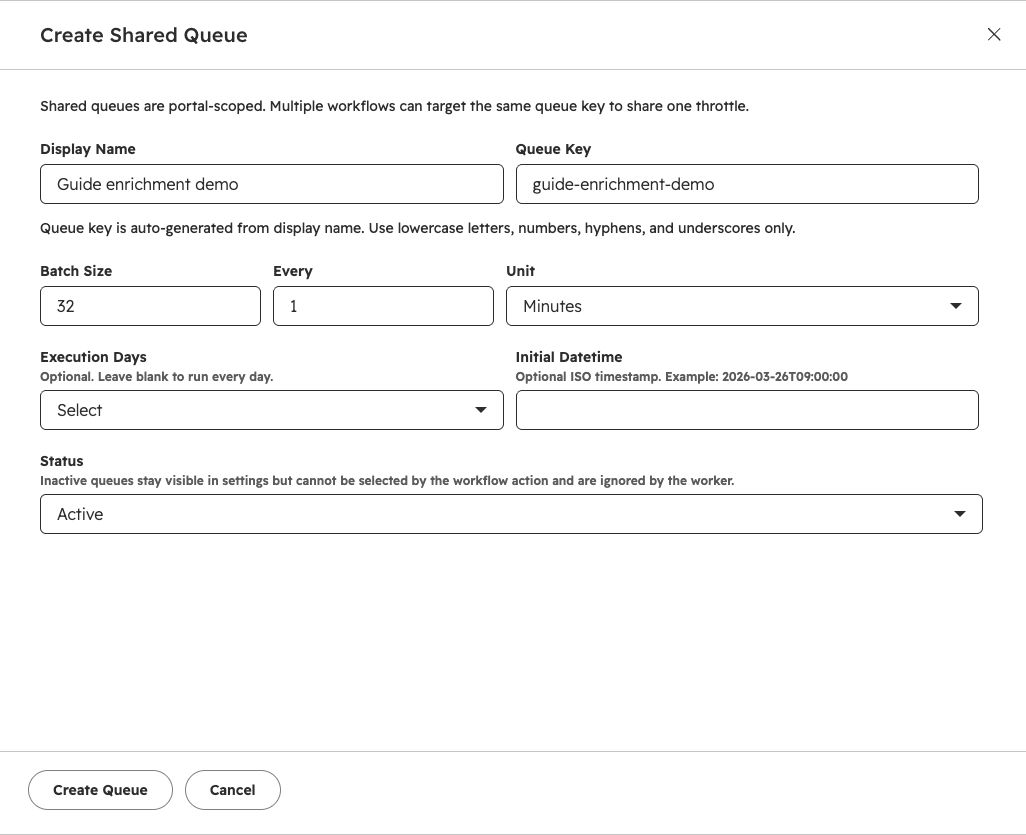

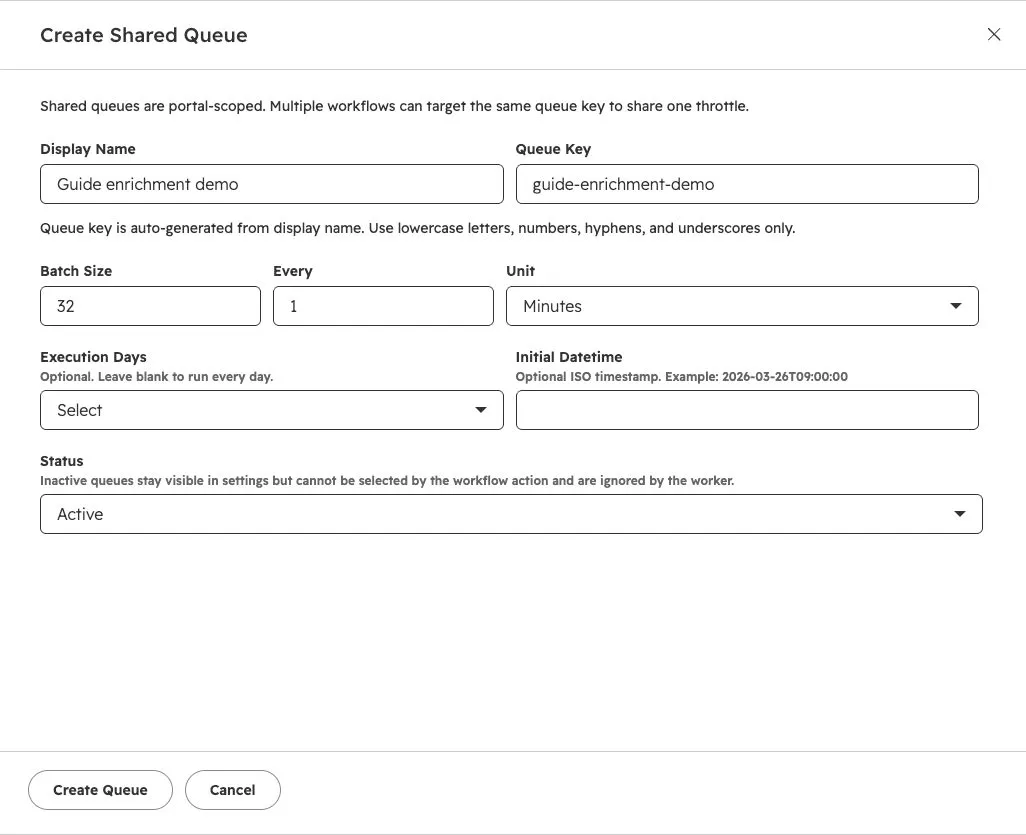

Daeda Shared Throttle creation panel with Guide enrichment demo, batch size 32, every 1 minute and active status. — Actual Daeda Throttle settings in a test account, captured 9 September 2026. Batch Size means records released together, not the maximum queue capacity. Open the full-size shared queue settings.

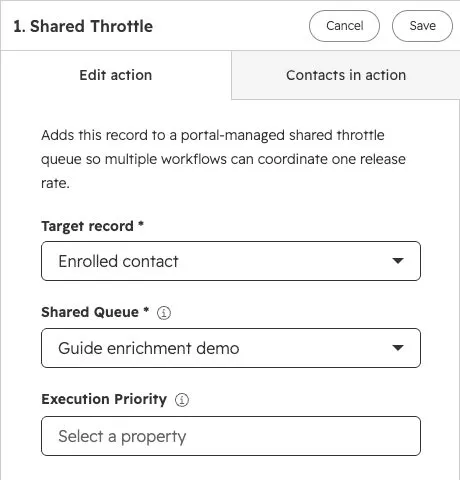

Workflow A: Shared Throttle with Guide enrichment demo selected. — **Workflow A.** Saved selection in the actual comparison workflow, captured 9 September 2026.

Workflow B: Shared Throttle with Guide enrichment demo selected. — **Workflow B.** Saved selection in the actual comparison workflow, captured 9 September 2026.

Workflow C: Shared Throttle with Guide enrichment demo selected. — **Workflow C.** Saved selection in the actual comparison workflow, captured 9 September 2026.

All three workflows select Guide enrichment demo. The shared allowance is 32 records per minute across this group, not 32 for each workflow.

What happens to a waiting record?

Daeda saves the action callback and tells HubSpot to hold that execution. The queue worker later completes callbacks for a configured batch, allowing those records to continue. This uses HubSpot’s supported asynchronous custom-action mechanism. HubSpot’s blocking and callback documentation.

The synthetic contact guide-A-040 and other demo contacts show Waiting in the Shared Throttle action. — Contact-status column captured at 20:35:54 UTC. The synthetic contact `guide-A-040` was waiting at Shared Throttle.

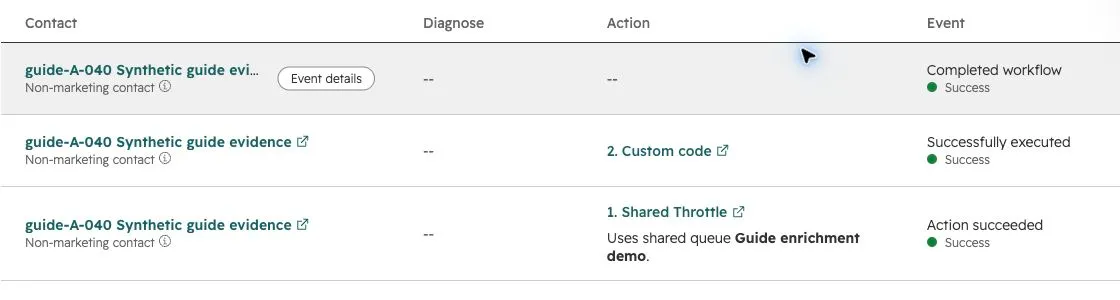

The same synthetic contact guide-A-040 shows Shared Throttle succeeded, custom code successfully executed, and workflow completed. — The same contact’s filtered HubSpot history subsequently showed throttle release, successful custom code and workflow completion. Receiver logs independently recorded its lookup at 20:43:18.437 UTC and update at 20:43:18.483 UTC, both returning 200. Times are from 9 September 2026. Open the full-size history capture.

This record illustrates waiting and continuation; it does not establish equal service between workflows or a promised wait time. The complete run data below includes every expected record.

Guide enrichment demo is active, configured for 32 every 1 minute, with zero records queued after the shared run. — After the run, selecting **Refresh** in Shared Throttle settings showed zero queued records. This verifies that the queue drained; the receiver data verifies the completed API operations.

What if I only have one workflow?

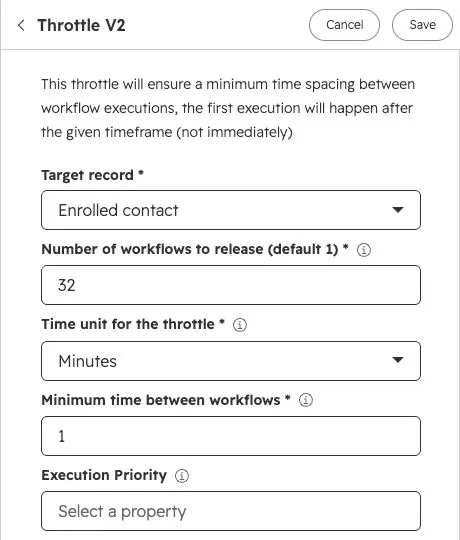

Throttle V2 action with release count 32, time unit Minutes and minimum time between workflows 1. — Actual Throttle V2 configuration panel, captured 9 September 2026. This single-step example was not saved or run. The release count is a batch of enrolled executions, so this setting does not evenly space 32 individual API calls.

If a native action limit already meets your needs, use it. For a Daeda queue at one step, choose Throttle V2 and set the release count, interval and unit there. Its release-count field refers to enrolled workflow executions—not the number of separate workflow definitions.

06 / VERIFY THE BEHAVIOUR

How can I verify that workflow throttling is working?

Measure incoming requests and successful operations at the receiving service, alongside records waiting and continuing in HubSpot. Compare actual request windows, 429 responses, retries and completion time. A successful throttle release alone does not prove the API operation succeeded.

A fair comparison includes correctly divided native budgets. The overloaded 32-per-workflow example demonstrates a budgeting mistake; it is not evidence that native controls cannot work.

The measured experiment

For each comparison, we ran three manual-only workflows in a HubSpot test account on 9 September 2026. Each enrolled its own exact segment of 100 synthetic contacts. Every contact’s custom-code action sent a lookup request followed by an update request: 300 records and 600 unique operations per comparison.

The same receiver admitted 80 requests in each fixed 60-second window: a nominal allowance of 100 minus 20 reserved slots. Those 20 slots represented a reservation, not generated background traffic. We ran comparisons sequentially with a fresh receiver state and run ID each time. Windows were anchored to receiver startup; completion time started at the first recorded enrollment request.

300 records × 2 requests; receiver allows 80 requests per fixed minute. Completion is timed from enrollment.
Configuration	Records complete	Completion time	All requests	First-attempt 429s	All-attempt 429s	Retry requests
No configured controlNo delay, queue or native action limit	300 / 300	22m 53.9s	1268	251	624	668
Equal one-minute delayOne-minute delay for every record	300 / 300	28m 56.0s	1461	283	823	861
Independent queues (over-allocated)32 records/minute in each of three queues	300 / 300	12m 59.1s	1036	237	420	436
Allocated native controls11 + 11 + 10 executions/minute across A/B/C	300 / 300	10m 17.4s	600	0	0	0
One shared queue32 records/minute combined across A/B/C	300 / 300	9m 15.1s	600	0	0	0

First-attempt 429s count the first received request for each operation; one record can contribute up to two. A retry request is another received attempt for the same workflow, record and operation. It is not a count of whole action re-executions. The action stopped on an Axios failure and threw the original error for HubSpot’s retry handling. Successful duplicate attempts consumed allowance but did not repeat the modeled business effect. A record counted as complete only after both operations succeeded.

The shared queue completed 300 records in 9m 15.1s, with 0 receiver-generated 429s. Its peak rolling 60-second interval contained 128 requests. This is why a successful test against fixed windows is not a guarantee for a provider enforcing a strict rolling-minute limit.

The correctly allocated native controls also completed 300 records with 0 receiver-generated 429s, in 10m 17.4s. Their peak rolling minute contained 72 requests in this run. Native controls can be enough when you account for the combined budget; a shared queue is a different way to allocate it, not a requirement for success.

Successful operations and peak arrivals, including retries
Configuration	Unique successful operations	Accepted duplicate requests	Most requests in a rolling second	Most requests in a rolling 60 seconds	Inspect the evidence
No configured control	600 / 600	44	285	599	Requests CSV · Windows CSV · Summary · Roster & settings
Equal one-minute delay	600 / 600	38	146	496	Requests CSV · Windows CSV · Summary · Roster & settings
Independent queues (over-allocated)	600 / 600	16	80	279	Requests CSV · Windows CSV · Summary · Roster & settings
Allocated native controls	600 / 600	0	8	72	Requests CSV · Windows CSV · Summary · Roster & settings
One shared queue	600 / 600	0	60	128	Requests CSV · Windows CSV · Summary · Roster & settings

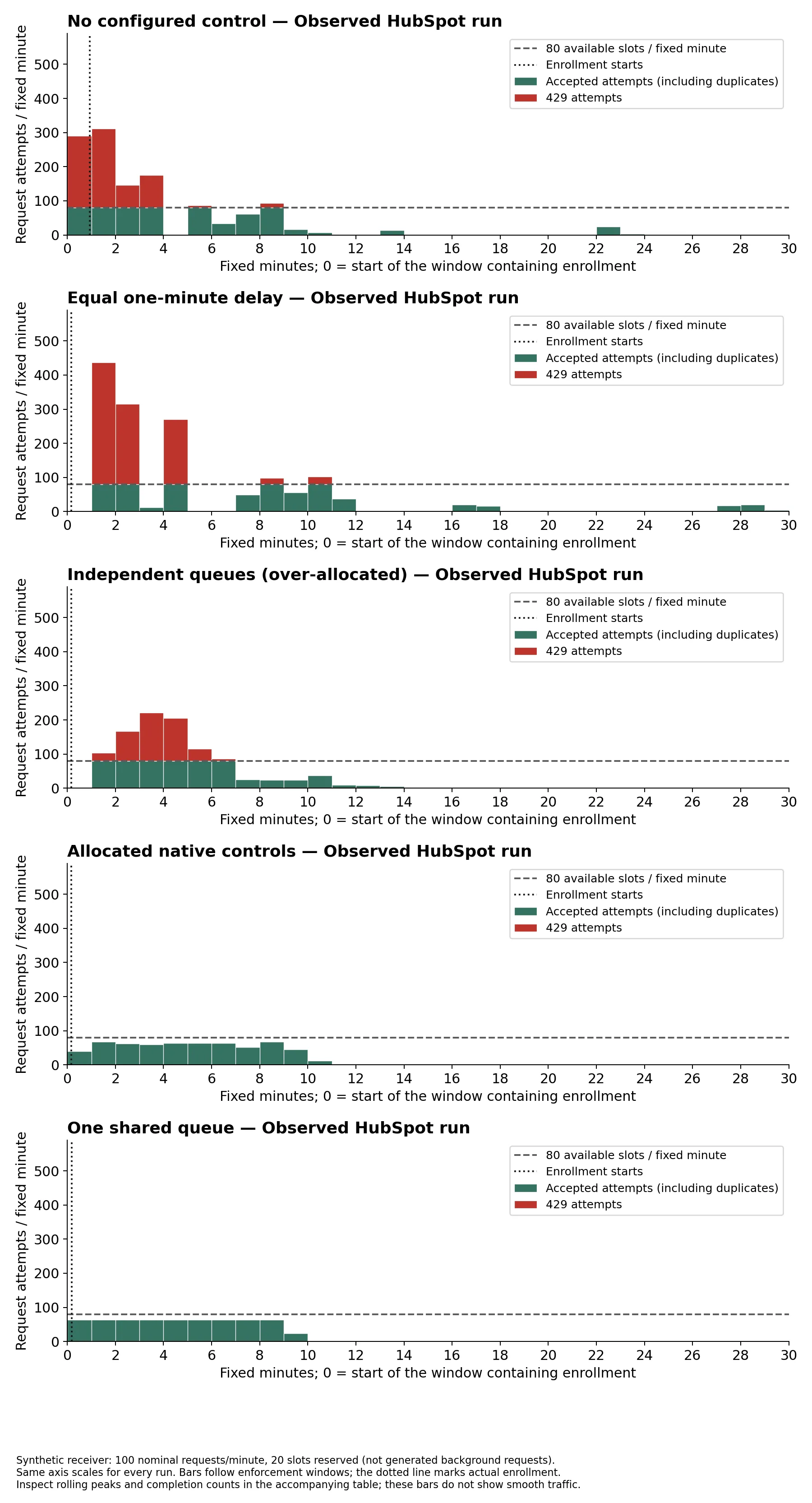

Five observed HubSpot runs plotted on identical axes: unthrottled, equal delay and over-allocated independent queues have red 429 attempts; allocated native controls and one shared queue have only accepted attempts. — Measured receiver traffic on 9 September 2026. Each bar groups attempts within one enforced 60-second window; zero marks the start of the window containing enrollment, and the dotted line marks enrollment itself. Native and shared controls avoided receiver 429s in these runs. The shared run still reached **128 requests in a rolling 60 seconds**, a different measure from the fixed windows shown here. Scroll horizontally on narrow screens, or open the full-size comparison chart.

Reproduce the comparison

Download the reproduction kit (ZIP) for the receiver, HubSpot action source, analyzer, chart generator, tests and step-by-step setup. The separate run downloads contain sanitized elapsed-time logs and complete synthetic rosters. No customer contacts or email addresses were used.

The equal-delay configuration waits one minute before code. The independent queues each release 32 records per minute, deliberately over-allocating the shared budget. The shared queue releases 32 combined. The native comparison allocates 11, 11 and 10 executions per minute to A, B and C, also totaling 32. All use the same two sequential requests and platform retry handling.

How to interpret these results

These are single observed runs against a synthetic fixed-window service, not guaranteed completion times or a benchmark of HubSpot’s maximum throughput. The temporary HTTPS tunnel can have its own transport limits; the logs only count requests that reached the receiver. They cannot establish that no request failed before arrival.

Fixed-window compliance does not prove rolling-window or concurrency compliance. Releases are batches, and downstream scheduling changes their arrival times. Inspect the rolling peaks and your destination’s actual rules before copying any setting. Daeda does not inspect or limit every HTTP request made after a workflow is released.

07 / TROUBLESHOOT

Why am I still getting 429 errors after adding a rate limit?

Check other callers, the real requests per execution, shorter rate windows and concurrency limits. Then inspect retries and daily usage. A workflow throttle changes when records continue; it does not automatically enforce every API limit or retry a failed downstream operation.

Find the limit that is still being exceeded
Symptom	Likely explanation	What to inspect	Next action
Each workflow works alone; together they fail	The separate budgets add up to too much	Shared token/account and combined arrivals	Divide budgets or use a shared queue
429s at the start of each release	A batch exceeds a shorter window or concurrency cap	Batch size, sub-minute limits and concurrency	Use smaller batches or pace requests in the caller
More calls than the calculation predicted	Executions make additional requests	Lookups, pagination, polling, branches and retries	Count worst-case requests and recalculate
Failures later in the day	A longer-period quota may be exhausted	Daily allowance and unrelated integrations	Set a usage budget; a minute limit alone is insufficient
Retries create duplicate updates	The action repeats a previously successful operation	Which operations succeeded before the error	Use idempotency keys or deduplicate business effects
Requests arrive long after queue release	Scheduling or downstream work changes arrival time	HubSpot history and downstream delays	Inspect the actual caller; do not infer timing from releases

Retry behaviour belongs to the action making the request. For custom code, HubSpot documents retry conditions for supported libraries and requires errors to be thrown or raised rather than swallowed. Workflow webhooks have their own retry behaviour and support for Retry-After. Check the appropriate documentation for your action and preserve duplicate protection. Custom-code retries · Webhook retries.

If an external integration is calling HubSpot independently, put the limiter in that integration. A throttle before HubSpot custom code can pace executions that call HubSpot, but it cannot control outside callers. Read the HubSpot API limits reference.

SOURCES & METHOD

Check the details behind the guide

Platform instructions were checked against official HubSpot documentation on 9 September 2026. Daeda behaviour was checked against the action handlers and queue worker; the configuration images come from a live test account. Conceptual diagrams are labelled as illustrations. Measured outcomes link to the receiver data and full synthetic rosters.

Daeda Technologies publishes this guide and builds Daeda Throttle, formerly Daeda Essentials. Product recommendations here describe where our queue fits; native controls remain a valid option.

Free planning tool

API rate limit calculator

Model the whole burst, reserve capacity for other callers, and calculate a safe release plan. Private-app daily limits are shared across the account.

Recommended starting point

32 records every 1 minute

Your full batch would exceed the safe allowance if released at once.

Safe request allowance: 64 requests per window
Estimated batch time: 10 minutes
Recommended control: Shared Throttle
Total workload: 600 requests across 300 records
Daily capacity after batch: No general daily limit included

Example settings, not a guaranteed safe rate. Place the shared throttle before the downstream action and verify request arrivals at the API.
